Building a high-performance modern gaming PC or an advanced AI-driven workstation on an outdated, restrictive motherboard bottlenecks your entire system. Slow memory handling, thermal throttling on dense storage drives, and laggy wireless connections undermine the true capabilities of cutting-edge hardware. The ASUS B650M-AYW WIFI AMD AM5 Micro-ATX Motherboard is an engineered, future-ready foundation built to unleash the complete processing potential of your system. Designed to seamlessly host next-generation AMD Ryzen™ 9000, 8000, and 7000 series processors, this compact yet feature-rich board delivers the high-speed data architecture and robust thermal stability needed for demanding gaming, elite multitasking, and future-forward computing.

The phenomenal speed and raw system responsiveness of this mainboard stem from its dual-channel DDR5 memory design and ultra-fast PCIe 5.0 storage engine. Outfitted with two high-density DIMM slots that support up to 96GB of DDR5 RAM overclocked to an astonishing 8000+ MT/s, the board features ASUS OptiMem II technology to shield memory pathways and dramatically eliminate data crosstalk. For storage, it provides a high-clearance PCIe 5.0 M.2 slot pushing blistering data transfer speeds up to 128Gbps, ensuring lightning-fast boot sequences and instant app loading times. Packed with premium integrated networking—including built-in Wi-Fi 6 and a Realtek 2.5Gb Ethernet port—and protected by a heavy-duty VRM heatsink matrix, the B650M-AYW WIFI ensures cool, latency-free operation under intense, prolonged computing loads.

Key Features

• Future-Ready AMD AM5 Socket – Native support for high-end AMD Ryzen™ 9000, 8000, and 7000 series desktop processors ensures multi-generational upgrade potential.

• Next-Gen DDR5 Performance – Dual DIMM slots support up to 96GB of high-speed DDR5 memory with AMD EXPO optimization profiles capable of reaching 8000+ MT/s (OC).

• Blistering PCIe 5.0 M.2 Support – Features an ultra-fast M.2 storage slot running at Gen 5 speeds alongside an additional PCIe 4.0 M.2 slot for extensive, rapid SSD configurations.

• Dual Ultra-Fast Networking – Loaded with premium Wi-Fi 6 (802.11ax) wireless and a dedicated Realtek 2.5Gb High-Speed Ethernet port for low-latency online gaming and seamless streaming.

• Comprehensive Tactical Cooling – Engineered with thick dedicated VRM heatsinks, an M.2 thermal guard, and an advanced 6-layer PCB design to quickly dissipate structural heat.

• Modern Peripheral I/O Matrix – Equipped with fast rear USB 10Gbps Type-A ports and a dedicated front-panel USB 5Gbps Type-C® header to effortlessly drive modern peripherals.

Technical Specifications

• Brand: ASUS

• Model: B650M-AYW WIFI

• Part Number: 90MB1KI0-M0UAY0

• Chipset: AMD B650

• CPU Socket: AMD AM5 Layout

• Form Factor: Micro-ATX (9.6 inch x 8.7 inch / 24.4 cm x 22.1 cm)

• Memory Support: 2 x DDR5 DIMM Slots (Max. 96GB Capacity)

• Memory Architecture: Dual-Channel, Supports AMD EXPO & ASUS OptiMem II

• Expansion Slots:

  • 1 x PCIe 4.0 x16 Slot (SafeSlot Core+ structural protection)

  • 1 x PCIe 4.0 x16 Slot (Supports x4 mode)

• Storage Interface:

  • 1 x M.2_1 Slot (Key M, Type 2280, PCIe 5.0 x4 mode)

  • 1 x M.2_2 Slot (Key M, Type 2280, PCIe 4.0 x4 mode)

  • 4 x SATA 6Gb/s Ports

• Wireless & Networking: Wi-Fi 6 (802.11ax) + Bluetooth + Realtek 2.5Gb High-Speed Ethernet

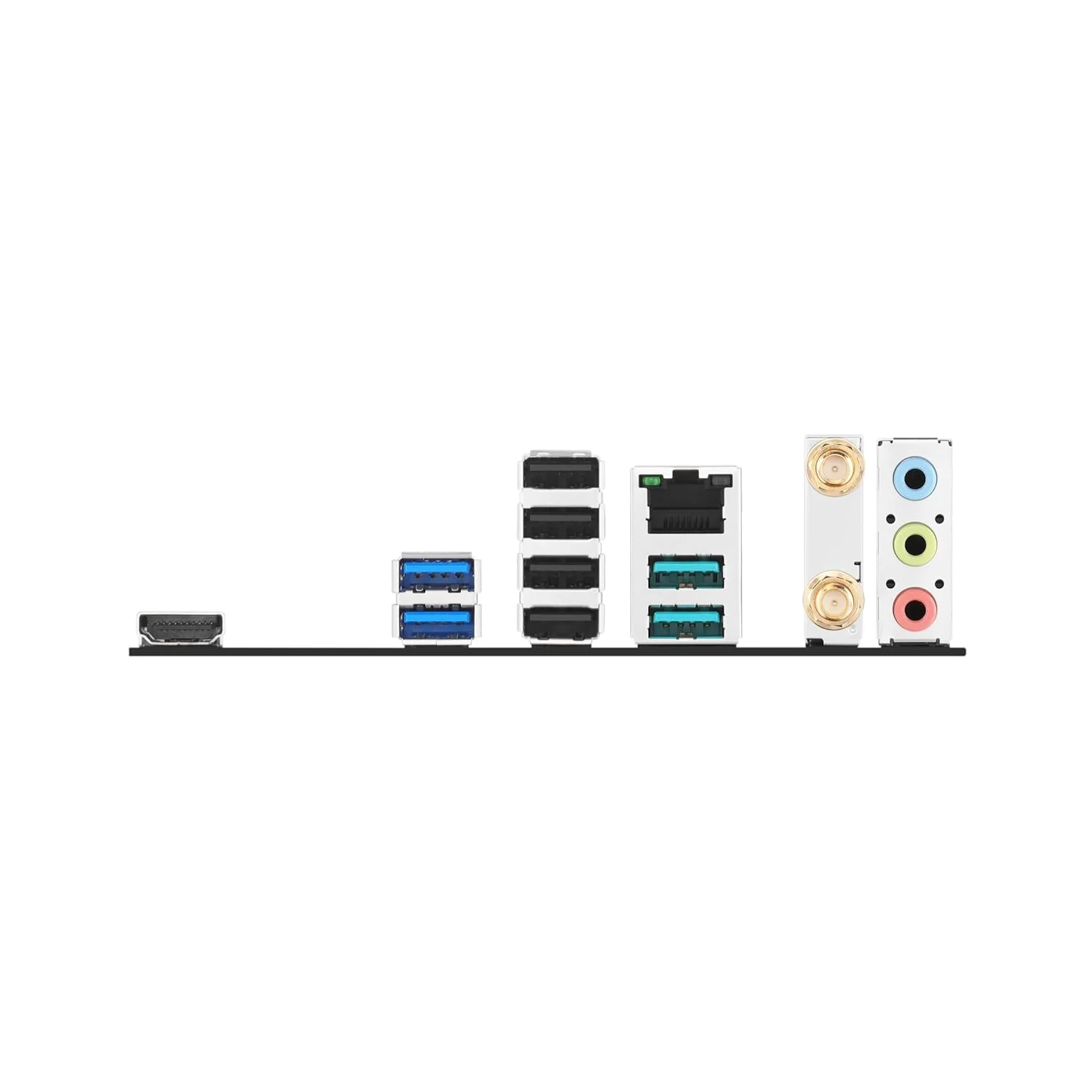

• Rear I/O Connectivity: 2 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A), 1 x HDMI (4K@60Hz), 1 x Wi-Fi Module, 1 x 2.5G LAN, 3 x Audio Jacks

• Internal Audio CODEC: Realtek 7.1 Surround Sound High Definition Audio

• RGB Personalization: Aura Sync Compatibility via Addressable Gen 2 Headers

Ideal For

PC gamers, custom builders, software developers, and content creators looking for a compact, ultra-reliable, and lightning-fast AM5 Micro-ATX motherboard to form the backbone of a high-tier DDR5 and PCIe 5.0 desktop system.

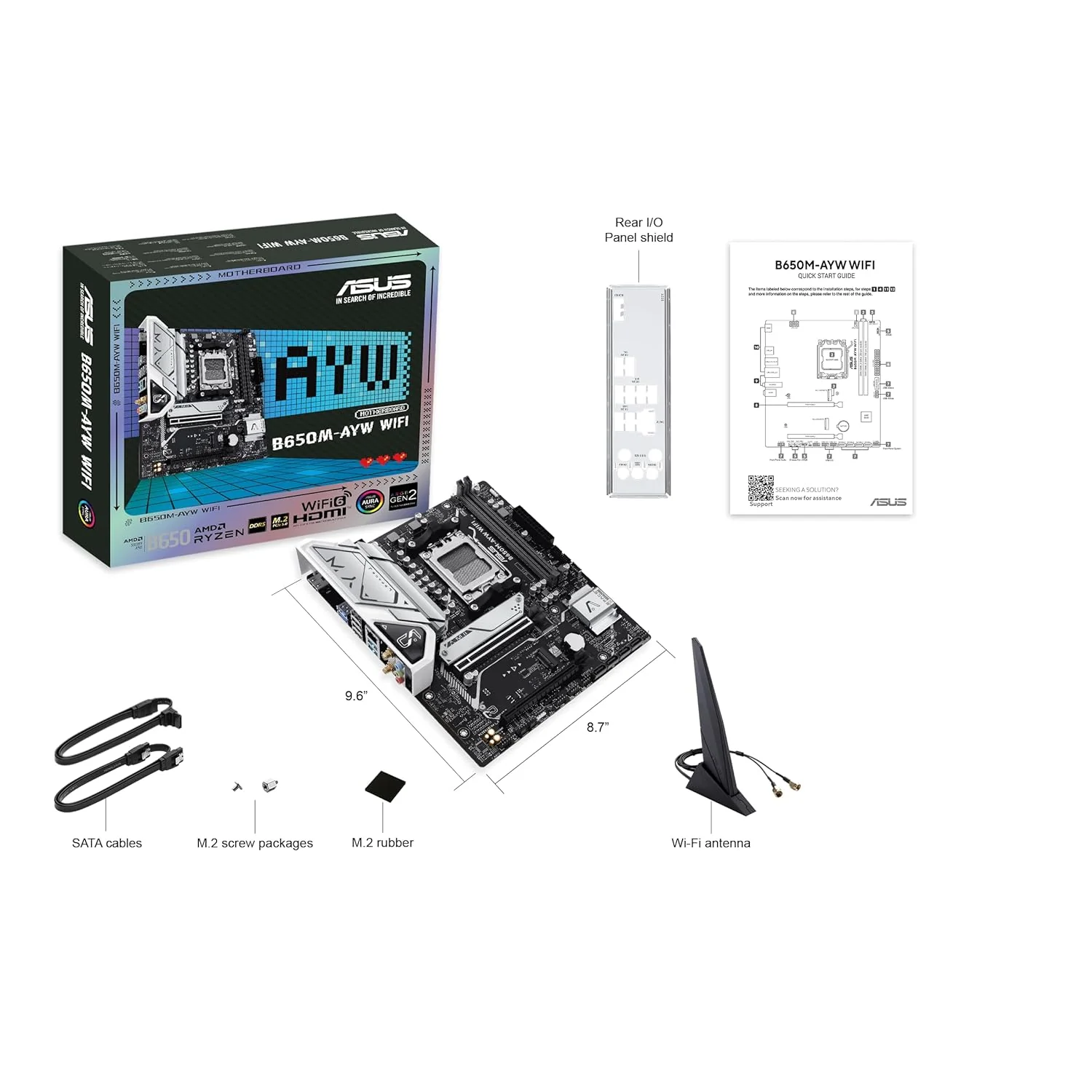

Package Includes

1 x ASUS B650M-AYW WIFI Mainboard Frame

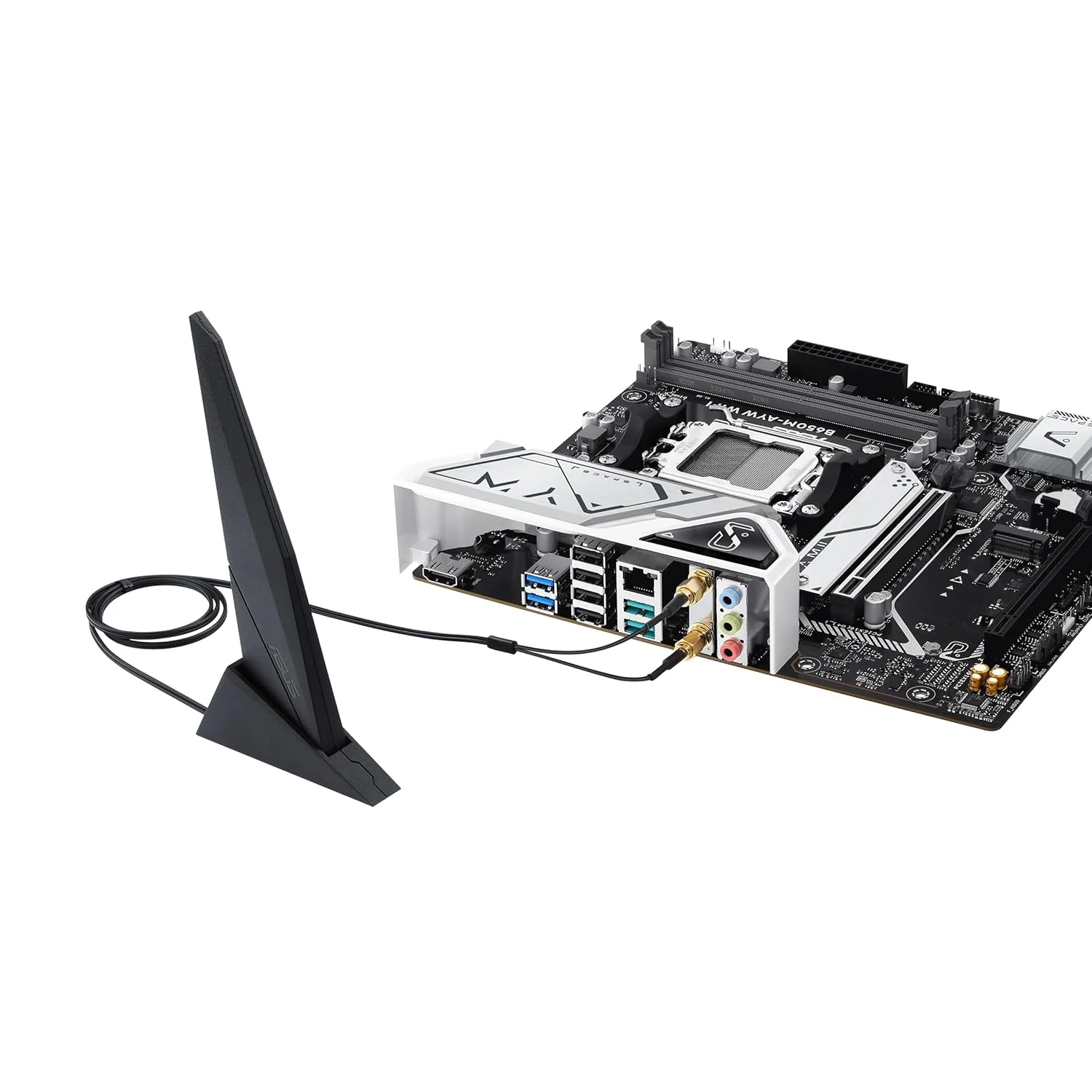

1 x ASUS Wi-Fi Moving Antenna Array

1 x Custom Back-Panel I/O Shield

1 x M.2 SSD Screw & Rubber Cushion Package

1 x Quick Start Reference Guide
