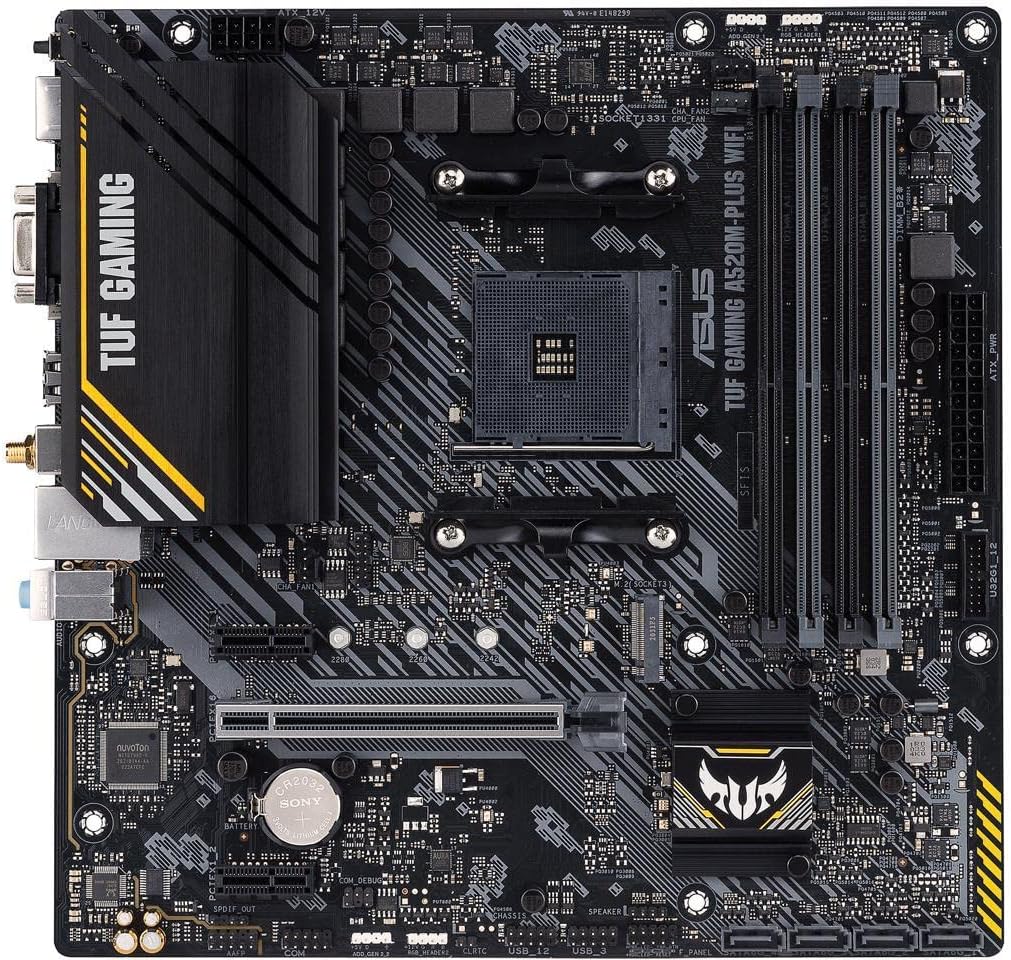

The ASUS TUF Gaming A520M-PLUS WIFI distills the essential elements of AMD’s mature AM4 platform into a durable, high-performance micro-ATX design. Built with military-grade TUF components, an upgraded VRM power solution, and a comprehensive cooling setup, this motherboard delivers rock-solid stability and long-term reliability for both intensive gaming setups and professional workstations.

Key Performance Features:

• Processor Compatibility: Ready for AMD Socket AM4, supporting 3rd Gen Ryzen™ and Ryzen™ 5000 / 4000 G-Series desktop processors out of the box.

• Onboard Wi-Fi & Bluetooth: Equipped with integrated 802.11ac Wi-Fi and Bluetooth connectivity, eliminating the need for extra network cards and keeping your workspace clean.

• Ultra-Fast Storage: Features a high-speed M.2 slot utilizing PCIe 3.0 x4 bandwidth to achieve data transfer speeds of up to 32 Gbps for fast boot times and rapid file loading.

• Military-Grade Durability: Built with a reinforced SafeSlot Core+ PCIe slot, TUF LANGuard, and military-grade capacitors for enhanced longevity and complete hardware protection.

• Versatile Display Outputs: Outfitted with DisplayPort 1.2, HDMI 2.1, and legacy D-Sub (VGA) ports to support multi-monitor configurations and AMD Ryzen processors with integrated graphics.

• Aura Sync RGB Lighting: Includes Addressable Gen 2 RGB headers, allowing you to synchronize custom lighting profiles effortlessly across your entire ecosystem using ASUS Armoury Crate.

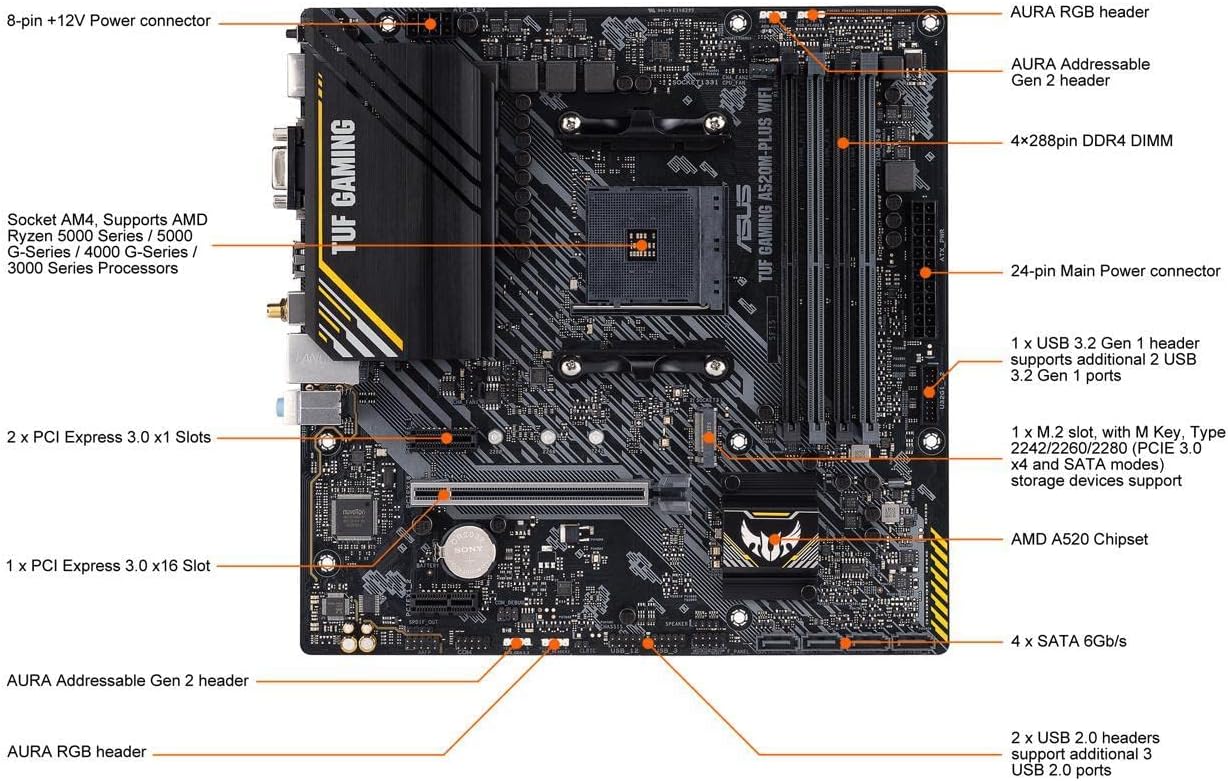

### Technical Specifications:

Feature	Specification
Brand / Model	ASUS TUF Gaming A520M-PLUS WIFI
Form Factor	Micro-ATX (mATX)
CPU Socket	AMD AM4
Chipset	AMD A520
Memory Support	4 x DDR4 DIMM slots (Dual Channel)
Expansion Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
Storage Ports	1 x M.2 (Key M, PCIe 3.0 x4 & SATA), 4 x SATA 6Gb/s
Wireless Networking	802.11ac Wi-Fi + Bluetooth
Rear USB Ports	4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0
Video Ports	1 x DisplayPort, 1 x HDMI, 1 x D-Sub (VGA)
Audio	Realtek 7.1 Surround Sound High Definition Audio

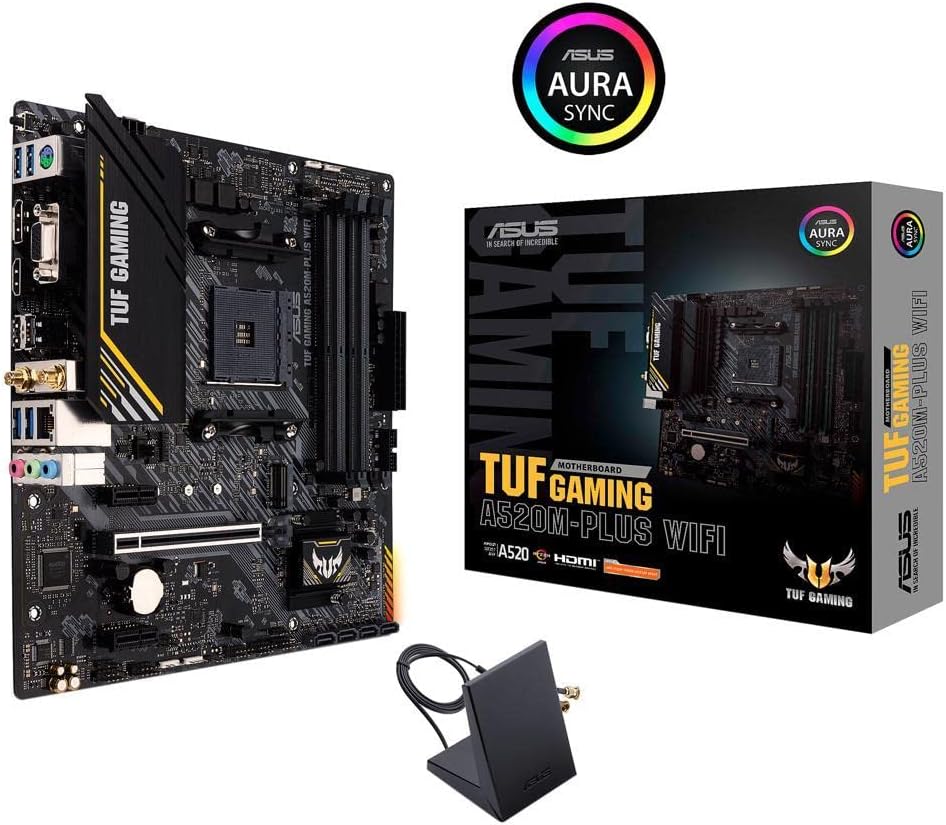

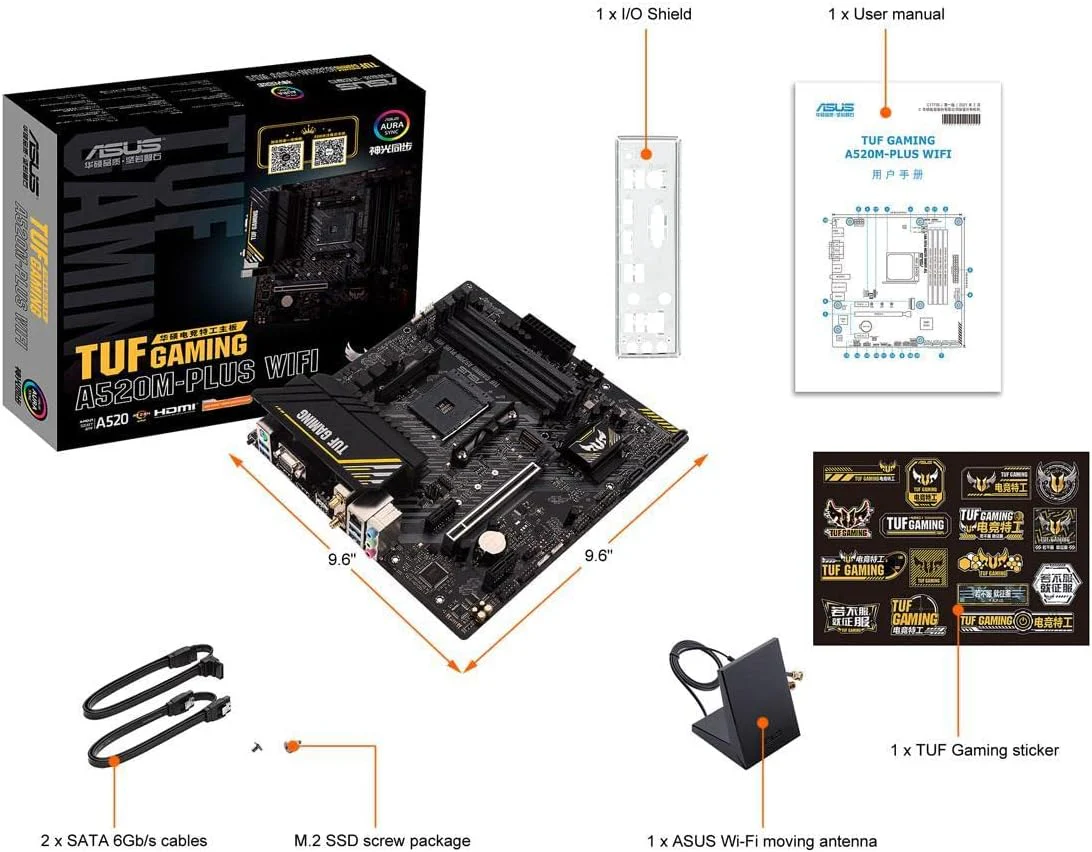

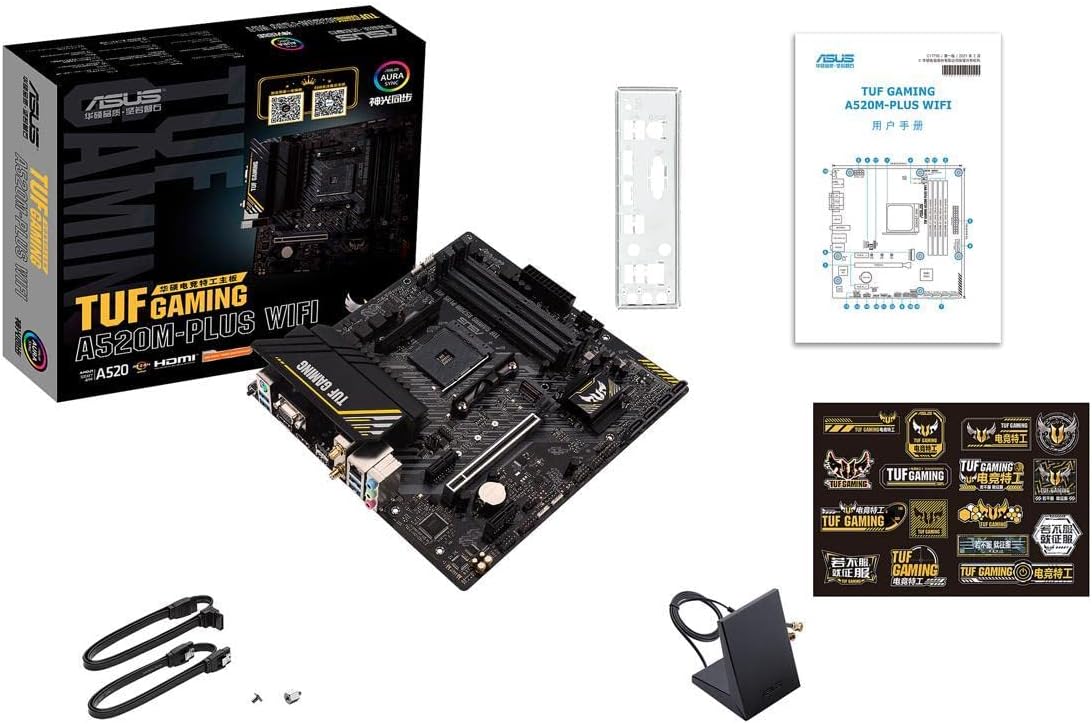

### What’s in the Box:

• 1 x ASUS TUF Gaming A520M-PLUS WIFI Motherboard

• 2 x SATA 6Gb/s cables

• 1 x ASUS Wi-Fi moving antenna

• 1 x I/O Shield

• 1 x M.2 SSD screw package

• 1 x TUF Gaming Certification card & User Manual
