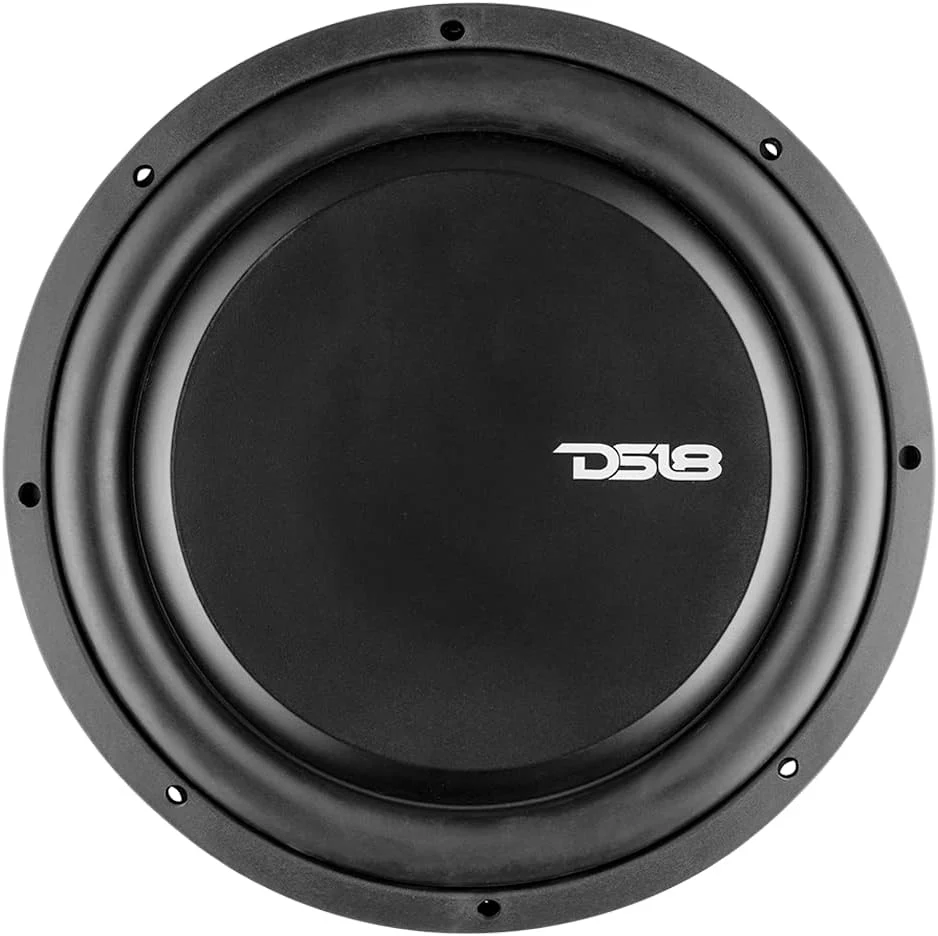

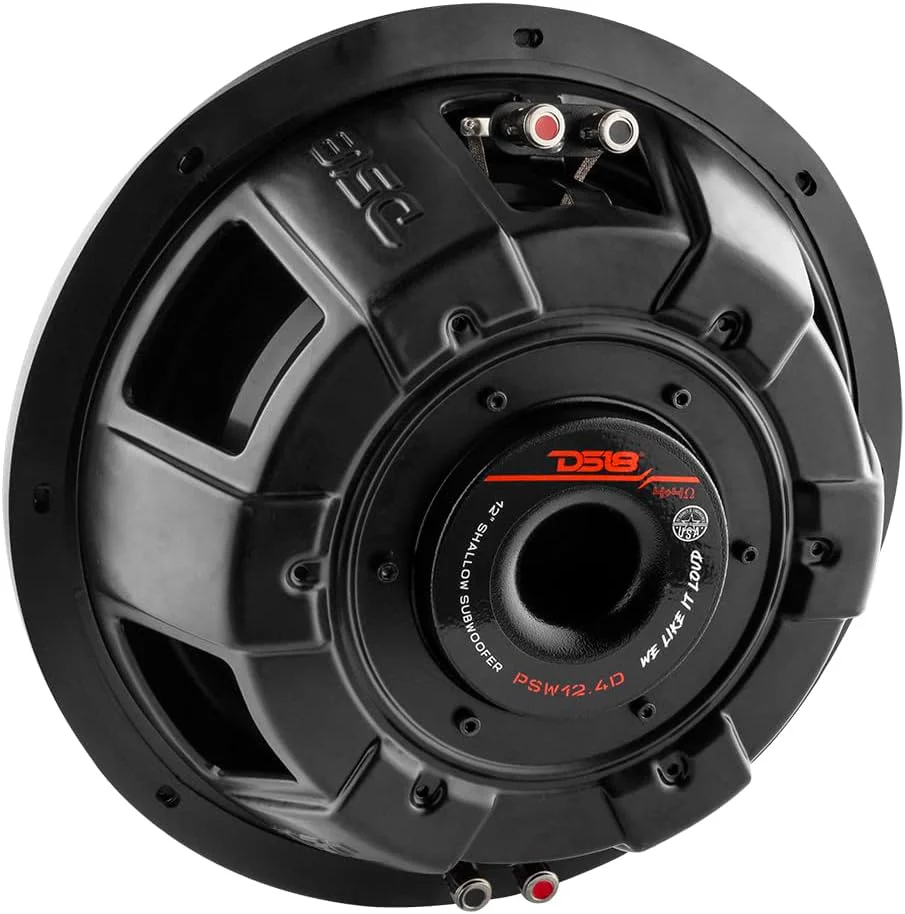

DS18 PSW12.4D Shallow-Mount 12-Inch Dual 4-Ohm Subwoofer, Water Resistant, 1200 Watts Max, 600 Watts RMS, High-Output Car and Truck Audio Bass Loudspeaker (Single)
DS18 PSW12.4D Shallow-Mount 12-Inch Dual 4-Ohm Subwoofer, Water Resistant, 1200 Watts Max, 600 Watts RMS, High-Output Car and Truck Audio Bass Loudspeaker (Single)

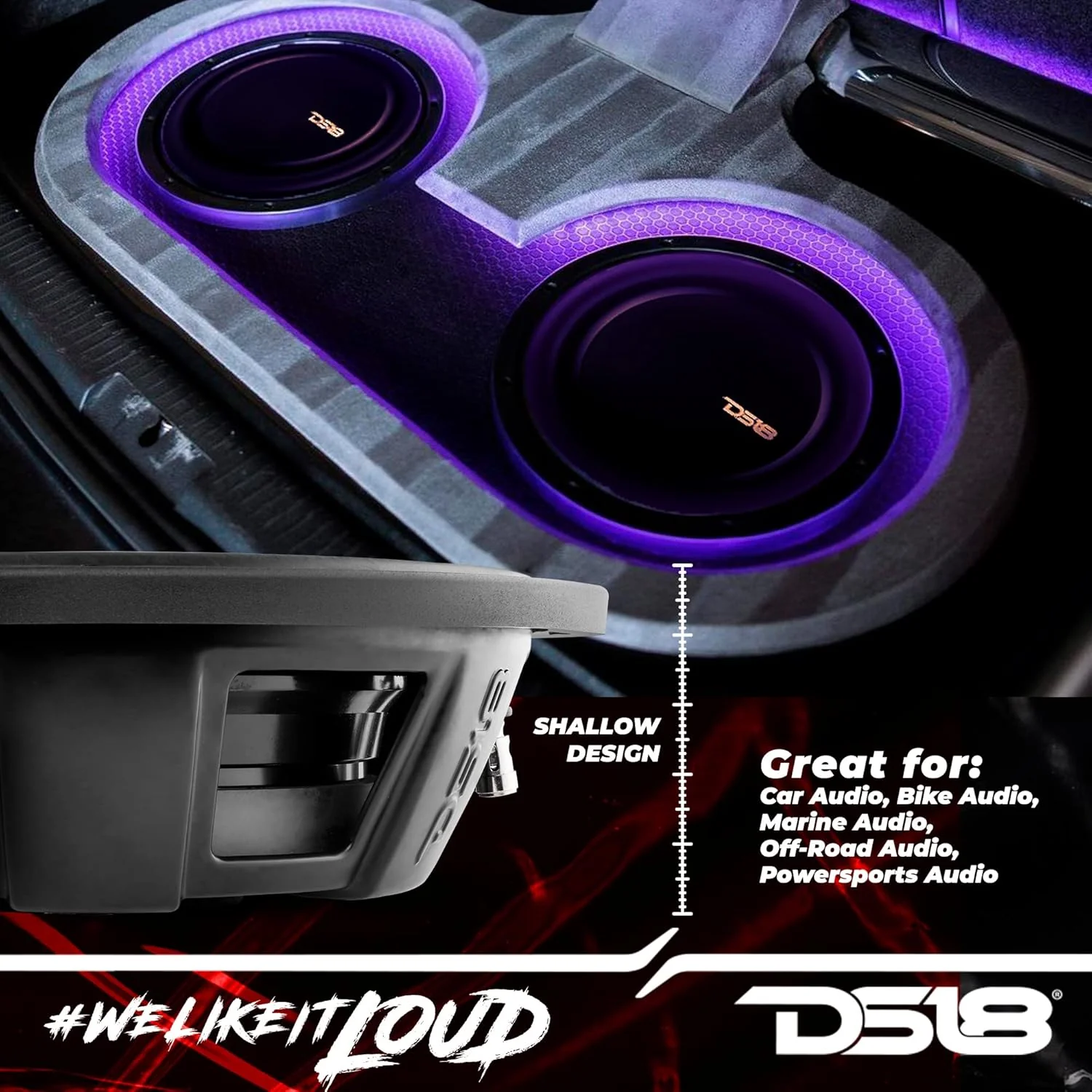

- Big Bass in Tight Spaces - Shallow-mount subwoofer, ideal for under-seat truck boxes, compact enclosures, and space-limited installs without sacrificing low-end output
- DUAL VOICE COIL - This sub comes in 4 Ohms Dual Voice Coil configuration so if wired appropriately it’s insane power will bring all your music to life
- SHALLOW MOUNT - Allows to fit in compact places and requires less box space than other subs. There’s always space for bass with the PSW12.4D
- STRONG DESIGN - The PPI Molding on the cone used by the PSW12.4D is also water resistant, making this speaker perfect for your bike, off-road or marine vehicle. The steel basket gives this speaker even stronger resistance against shock and vibration
-
NEVER STOP INNOVATING ATTITUDE - DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market
The DS18 PSW12.4D is a premium, competition-grade 12-inch shallow-mount dual 4-ohm subwoofer engineered to deliver deep, hard-hitting bass in highly restricted environments. Specifically designed as the ultimate space-saving bass solution for compact cars, regular cab trucks, and tight under-seat configurations, this slim-profile powerhouse handles an impressive 600W RMS and a massive 1200W Max peak power without requiring a massive enclosure footprint.
Built to withstand tight, demanding environments, the PSW12.4D features a water-resistant IP52-rated poly-injection cone coupled with a high-excursion rubber surround. This resilient construction allows for maximal linear travel and reliable protection against moisture and dust infiltration. At its core, an oversized 2.5-inch, 4-layer black aluminum dual voice coil works alongside an advanced, high-flux double-stacked ferrite motor. This specialized shallow-mount architecture provides exceptional power handling and thermal dissipation while keeping the total mounting depth to a remarkably slim 3.6 inches. The dual 4-ohm voice coil setup delivers versatile wiring configurations, allowing you to drop down to a 2-ohm parallel load to draw maximum power from your amplifier.
-
Type: Dual Voice Coil Shallow-Mount Subwoofer (Sold Individually)
-
Application: Optimally Engineered for Tight Spaces, Under-Seat, and Behind-Seat Enclosures in Cars and Trucks
-
Protection: Water-Resistant (IP52 Rated) Poly-Injection Cone
-
Power Handling: 1200 Watts MAX / 600 Watts RMS
-
Nominal Impedance: Dual 4 Ohms
-
Sensitivity: 84dB (1W / 1m)
-
Frequency Response: 20Hz – 600Hz
-
Cone Composition: Water-Resistant Poly-Injection Cone with Premium Rubber Surround
-
Dust Cap: High-Strength Full-Face Composite Poly Dust Cap
-
Voice Coil: 2.5-Inch (63.5mm) 4-Layer Black Aluminum Dual Voice Coil
-
Basket Material: Heavy-Duty Die-Cast Aluminum Basket
-
Motor Structure: High-Flux Double-Stacked Ferrite Magnet
-

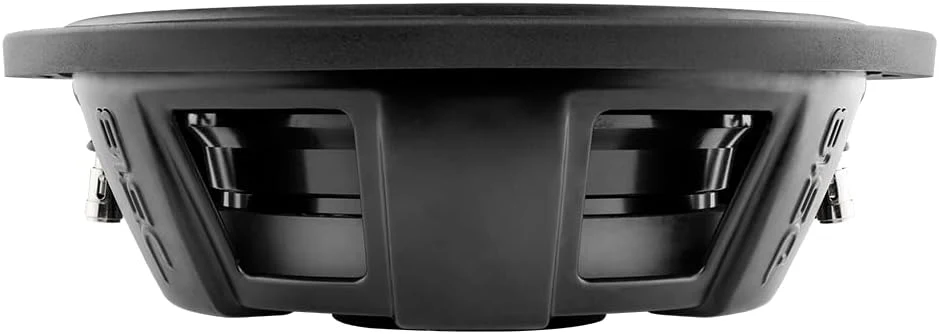

Mounting Depth: Ultra-Slim 3.66 inches (93mm)
-
Cutout Diameter: 11.14 inches (283mm)
-
Original: $8,500.00
-65%$8,500.00
$2,975.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Big Bass in Tight Spaces - Shallow-mount subwoofer, ideal for under-seat truck boxes, compact enclosures, and space-limited installs without sacrificing low-end output
- DUAL VOICE COIL - This sub comes in 4 Ohms Dual Voice Coil configuration so if wired appropriately it’s insane power will bring all your music to life
- SHALLOW MOUNT - Allows to fit in compact places and requires less box space than other subs. There’s always space for bass with the PSW12.4D
- STRONG DESIGN - The PPI Molding on the cone used by the PSW12.4D is also water resistant, making this speaker perfect for your bike, off-road or marine vehicle. The steel basket gives this speaker even stronger resistance against shock and vibration
-
NEVER STOP INNOVATING ATTITUDE - DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market
The DS18 PSW12.4D is a premium, competition-grade 12-inch shallow-mount dual 4-ohm subwoofer engineered to deliver deep, hard-hitting bass in highly restricted environments. Specifically designed as the ultimate space-saving bass solution for compact cars, regular cab trucks, and tight under-seat configurations, this slim-profile powerhouse handles an impressive 600W RMS and a massive 1200W Max peak power without requiring a massive enclosure footprint.
Built to withstand tight, demanding environments, the PSW12.4D features a water-resistant IP52-rated poly-injection cone coupled with a high-excursion rubber surround. This resilient construction allows for maximal linear travel and reliable protection against moisture and dust infiltration. At its core, an oversized 2.5-inch, 4-layer black aluminum dual voice coil works alongside an advanced, high-flux double-stacked ferrite motor. This specialized shallow-mount architecture provides exceptional power handling and thermal dissipation while keeping the total mounting depth to a remarkably slim 3.6 inches. The dual 4-ohm voice coil setup delivers versatile wiring configurations, allowing you to drop down to a 2-ohm parallel load to draw maximum power from your amplifier.
-
Type: Dual Voice Coil Shallow-Mount Subwoofer (Sold Individually)
-
Application: Optimally Engineered for Tight Spaces, Under-Seat, and Behind-Seat Enclosures in Cars and Trucks
-
Protection: Water-Resistant (IP52 Rated) Poly-Injection Cone
-
Power Handling: 1200 Watts MAX / 600 Watts RMS
-
Nominal Impedance: Dual 4 Ohms
-
Sensitivity: 84dB (1W / 1m)
-
Frequency Response: 20Hz – 600Hz
-
Cone Composition: Water-Resistant Poly-Injection Cone with Premium Rubber Surround
-
Dust Cap: High-Strength Full-Face Composite Poly Dust Cap
-
Voice Coil: 2.5-Inch (63.5mm) 4-Layer Black Aluminum Dual Voice Coil
-
Basket Material: Heavy-Duty Die-Cast Aluminum Basket
-
Motor Structure: High-Flux Double-Stacked Ferrite Magnet
-
Mounting Depth: Ultra-Slim 3.66 inches (93mm)
-
Cutout Diameter: 11.14 inches (283mm)
-
