• • Easy-to-use cable
• • No software required
• • Active DisplayPort^™ conversion
• • Easy installation
• • Compliant with DisplayPort^™ v1.2
• • Compliant with HDMI 1.4a specifications- up to 3 Gbps
• • Supports resolutions up to 4K Ultra HD (4096 x 2160 @ 60Hz) and 3D video formats over HDMI
• • Supports Audio
• • Features are subject to the capabilities of the computer and graphics card solution

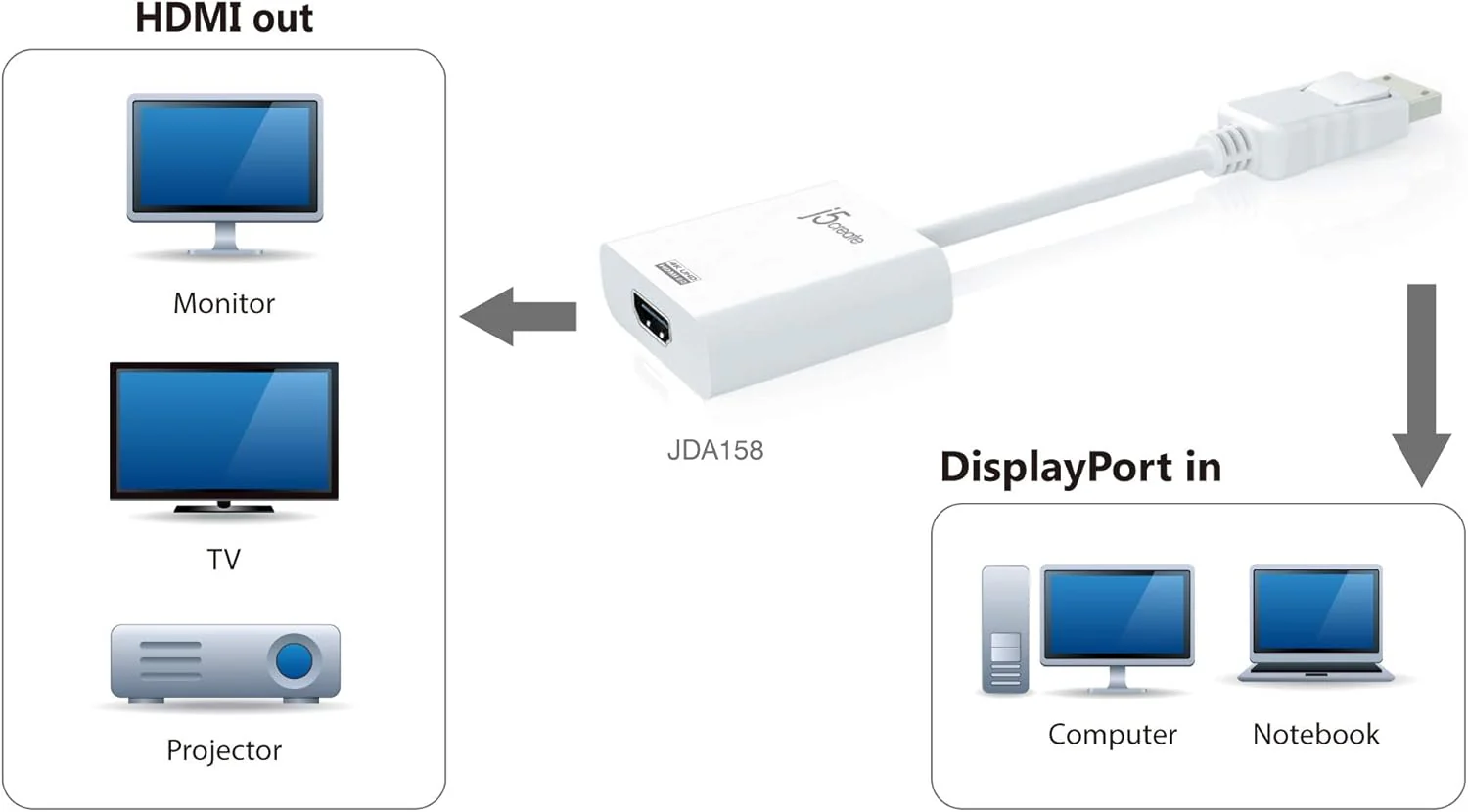

The JDA158 DisplayPort^™ to 4K HDMI Active Adapter allows you to quickly and easily connect your Mac or PC to a 4K HDTV or other display device using an HDMI input. Simply connect the DisplayPort^™ end of the connector to your computer and plug your existing HDMI cable from the display into the adapter. The adapter seamlessly converts the DisplayPort^™ video signal into an HDMI signal for a fast plug-and-play setup. Fully DisplayPort^™ 1.2 compliant, also compatible with DisplayPort^™ 1.1

Interface
Host Interface	DisplayPort™ Male Connector
Video & Audio Interface	HDMI Female Connector
Converter Type	Active
Physical Specifications
Housing Material	Plastic
Dimensions	Main body: 17.7 (W)x 17.7 (H)x 5.9 (D) in. 45 (W)x45 (H)x15 (D) mm Cable length: 6.3 in. (160 mm)
Weight	Approximately 0.04 lbs (17.5 g)



System requirements

• Available DisplayPort^™ 1.2
• The maximum resolution for DisplayPort^™ 1.1a is 2560 x 1200
