Experience an uninterrupted view of your high-end hardware with the Phanteks NV Series NV5S Mid-Tower Showcase Case. Specifically engineered to offer a seamless, panoramic display, this premium chassis features a pillar-less corner design with dual tempered glass panels that beautifully showcase your motherboard, RAM, and graphics card from multiple angles.

Unlike standard enclosures, this upgraded NV5S variant comes completely ready for heavy airflow right out of the box, featuring 4 pre-installed 120 mm M25 Digital-RGB fans and an integrated D-RGB controller. With a spacious internal layout tailored to comfortably accommodate massive modern graphics cards and high-speed liquid cooling setups, the NV5S effortlessly balances show-stopping hardware aesthetics with top-tier cooling performance.

Key Features

• Pillar-Less Glass Showcase: Dual tempered glass panels on the front and side meet seamlessly at the corner without bulky support pillars, offering an absolute aquarium-style layout for your components.

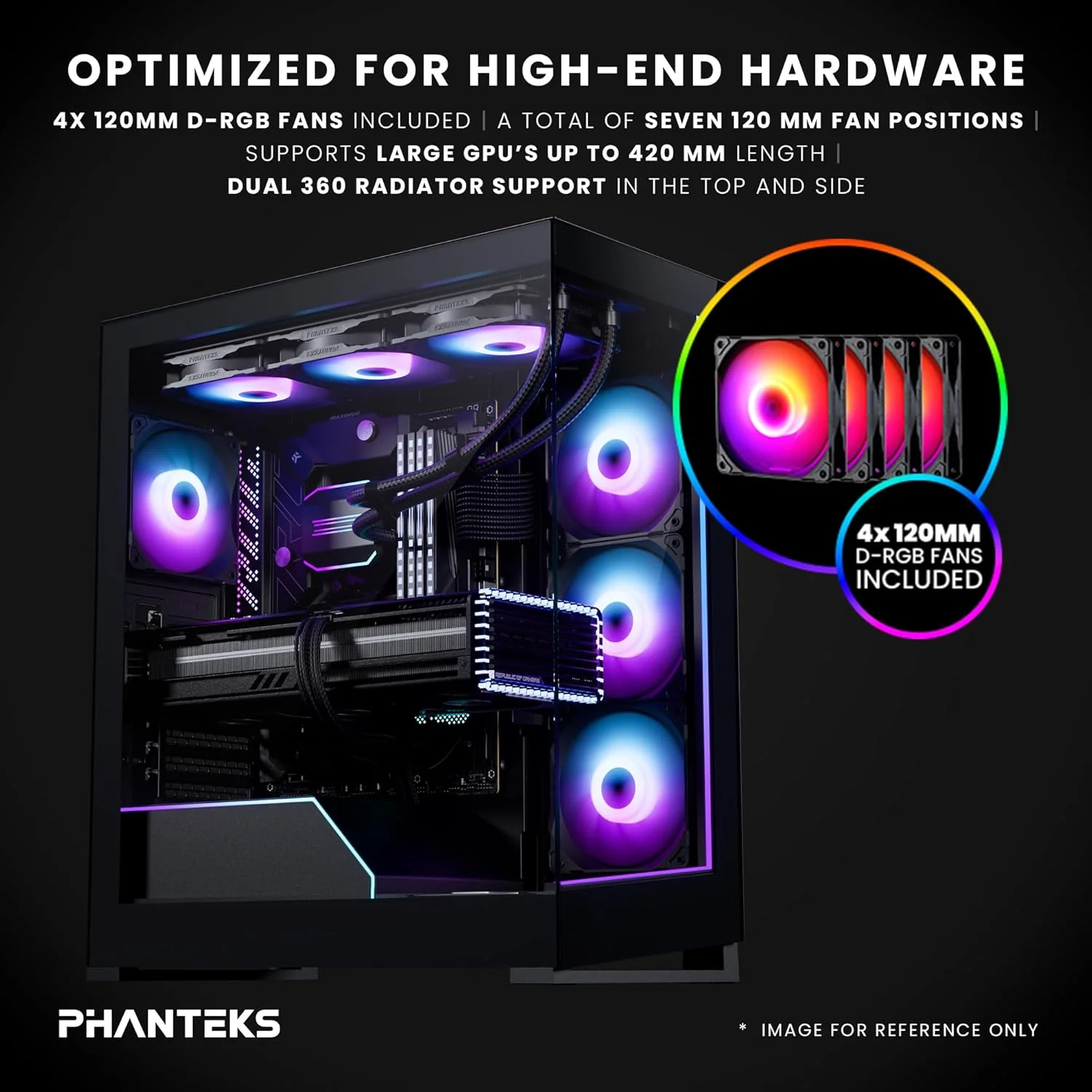

• 4 Pre-Installed M25 D-RGB Fans: Equipped from day one with four high-performance 120 mm Digital-RGB fans to pull massive air currents across your critical hardware immediately.

• Built-In D-RGB Controller: Allows you to control your lighting colors and motion modes instantly using physical buttons on the top I/O panel, completely free of complicated software.

• Next-Gen GPU Space Optimization: Offers an ultra-wide interior chassis layout that safely leaves plenty of room for heavy triple-fan graphics cards and prevents harsh bending on 12VHPWR power cables.

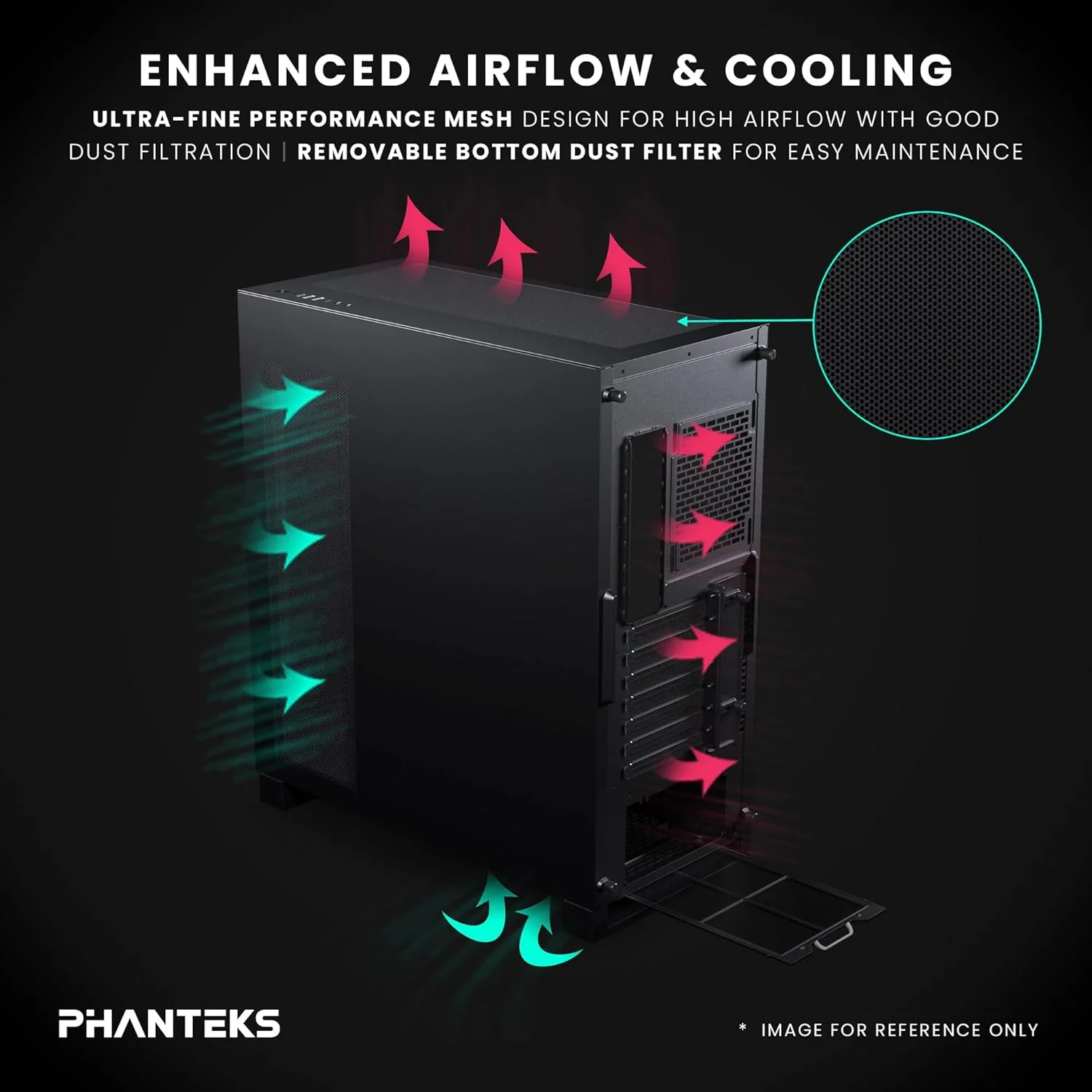

• High-Density Performance Mesh: The top and side panels are covered in a precision-engineered fine mesh pattern to maximize cooling breathability while keeping dust out.

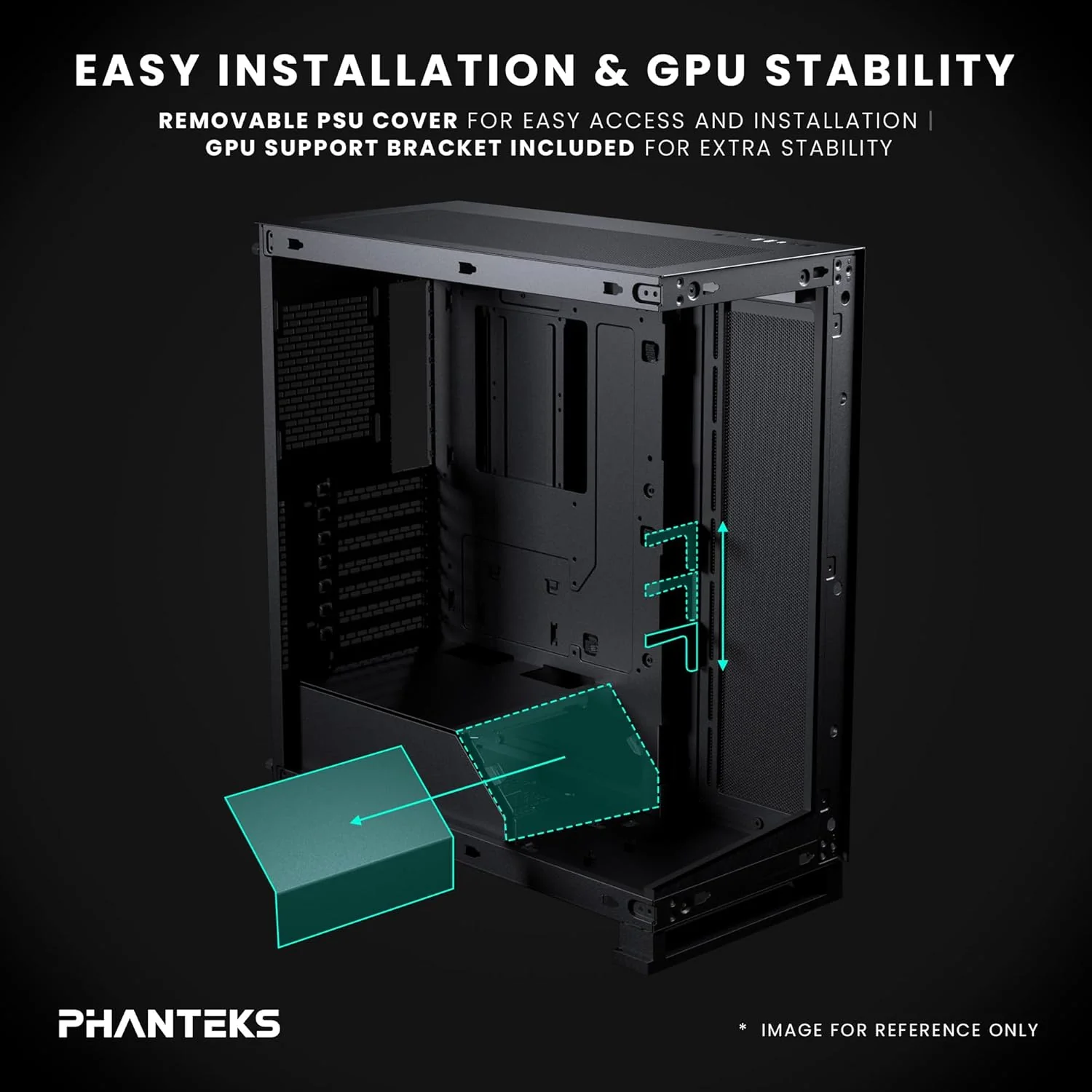

• Angled Power Supply Shroud: Features a distinct, angled bottom PSU cover that optimizes airflow toward the graphics card while allowing easy access for modular cable management.

Hardware Compatibility

➢ Motherboard Support: E-ATX (up to 280 mm wide), ATX, Micro-ATX, Mini-ITX

➢ Graphics Card (GPU) Support: Up to 430 mm maximum length

➢ CPU Air Cooler Clearance: Up to 170 mm maximum height

➢ Power Supply (PSU) Support: Standard ATX up to 195 mm in length

➢ Liquid Cooling Radiators: Top: Up to 360 mm | Side: Up to 360 mm | Rear: 120 mm

➢ Total Fan Capacity: Supports up to 7 x 120 mm fans simultaneously (4 included)

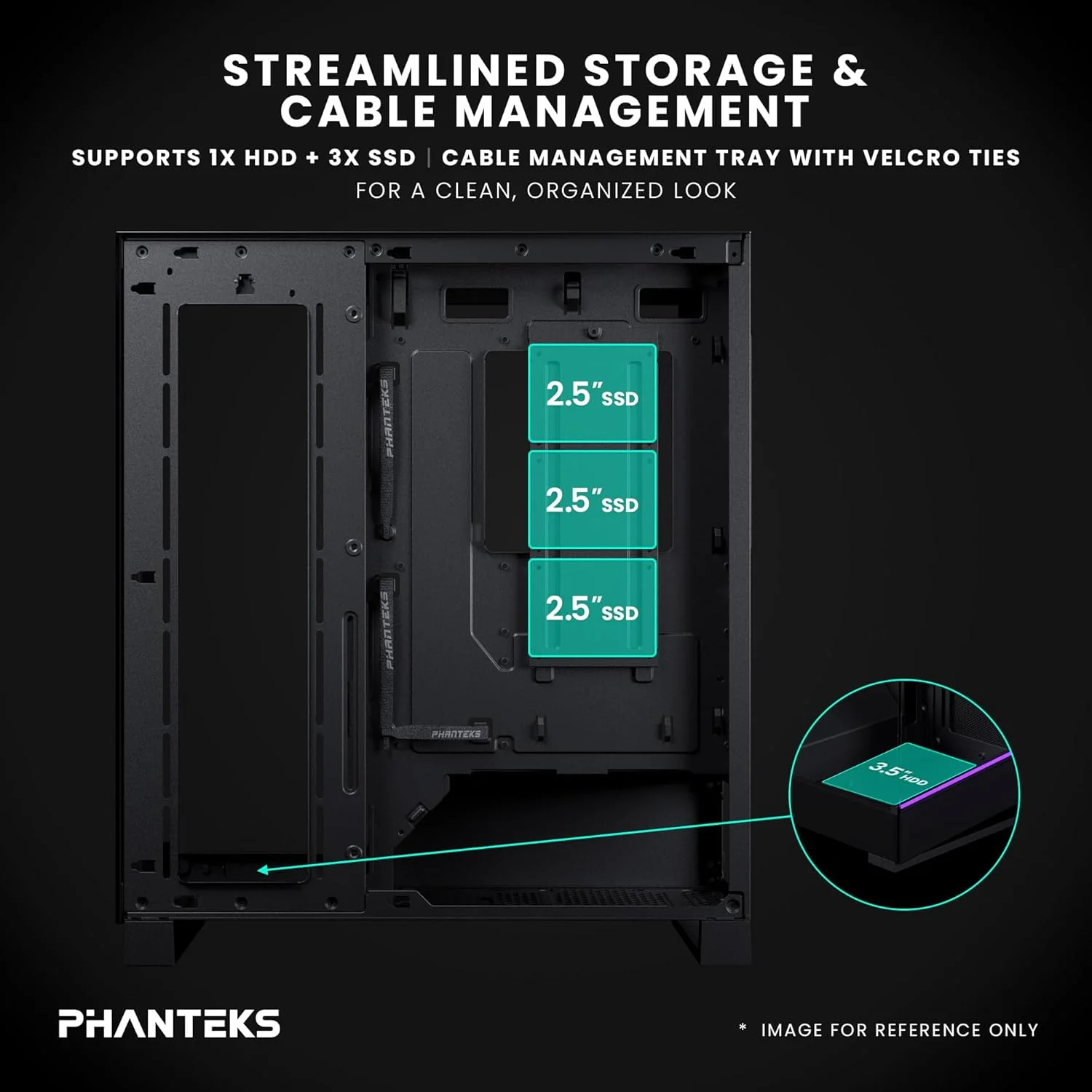

➢ Storage Drive Expansion: 1 x 3.5" HDD + 3 x 2.5" SSDs

Technical Specifications

➢ Case Form Factor: Mid-Tower Showcase

➢ Dimensions (W x D x H): 218 x 450 x 505 mm

➢ Net Weight: 8.35 kg

➢ Chassis Materials: Steel Frame + 3mm Tempered Glass Panels

➢ Expansion Slots: 7

➢ Front I/O Ports: 1 x USB 3.2 Gen 2 Type-C | 2 x USB 3.0 | 1 x Microphone/Headphone combo jack | Power Button | Reset Button | D-RGB Mode Button | D-RGB Color Button

➢ Pre-Installed Fan Specs: 4 x 120 mm Phanteks M25 Digital-RGB Fans

➢ Full Fan Support Configurations:

• Top: 3 x 120 mm

• Side: 3 x 120 mm

• Rear: 1 x 120 mm

➢ Included Accessories: Integrated GPU Anti-Sag Support Bracket | Triple SSD Mounting Bracket | Precision Screw Accessory Box

Ideal For

• Showcase Builders & RGB Enthusiasts: Perfect for creators who want an ultra-clean, panoramic presentation to beautifully display synchronized internal lightning profiles and custom components.

• Premium Graphics Card Owners: Excellent for gamers running large flagship graphics cards (like the RTX 40/50 Series or RX 7000/8000 Series) who need maximum horizontal length clearance.

• High-Airflow Setup Configurations: Ideal for builders who want immediate premium cooling out of the box without the extra expense of buying individual aftermarket chassis fan packs.
