Take command of mainstream and competitive gaming with the XFX Swift AMD Radeon RX 9060 XT OC Gaming Edition (Model: RX-96TSW16BQ). Powered by the highly efficient, next-generation AMD RDNA 4 architecture, this factory-overclocked graphics card is engineered to dominate 1440p workflows and maximize frame rates in competitive esports titles. Equipped with an impressive 16GB of high-speed GDDR6 memory, it provides an extensive frame buffer that ensures your system easily handles high-resolution texture packs, intensive ray tracing, and heavy asset rendering without micro-stuttering.

The XFX Swift edition pairs this high-tier processing power with a refined, aerodynamic triple-fan cooling solution. Utilizing three dual ball-bearing fans and a layout of composite copper heatpipes, the shroud maximizes structural airflow while operating quietly under load. Complete with an industrial all-metal backplate for rigid structural support, future-proof DisplayPort 2.1a outputs for next-generation gaming monitors, and native support for AI-driven upscaling via AMD FSR 4, the RX 9060 XT OC Swift is a premium, durable choice for custom PC configurations.

Key Features

• Factory Overclocked (OC) Tuning: Arrives pre-tuned out of the box with aggressive boost frequencies, extracting maximum processing performance from the silicon compared to reference standards.

• Massive 16GB GDDR6 VRAM: Loaded with 16GB of dedicated video memory, providing a future-proof buffer to seamlessly run next-generation AAA games and intensive content creation apps.

• XFX Swift Triple-Fan Thermals: Features a high-surface-area aluminum heatsink cooled by three low-noise fans that spin down completely during idle workloads to offer near-silent operation.

• Advanced AMD RDNA 4 Architecture: Built on an optimized cutting-edge process node with dedicated ray tracing hardware and AI Matrix accelerators to provide rich lighting reflections and high power efficiency.

• Next-Gen DisplayPort 2.1a Hub: Outfitted with advanced video outputs capable of handling exceptionally high refresh rates and color depths at 4K and 8K display configurations.

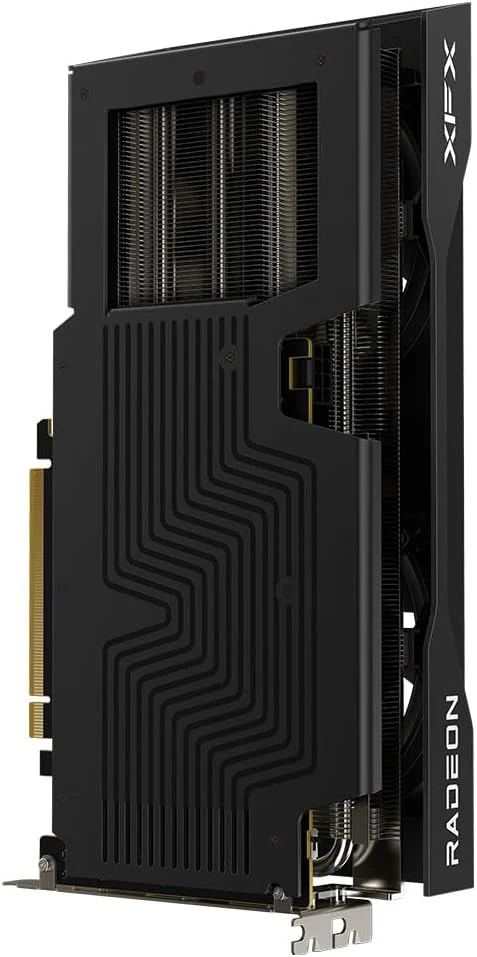

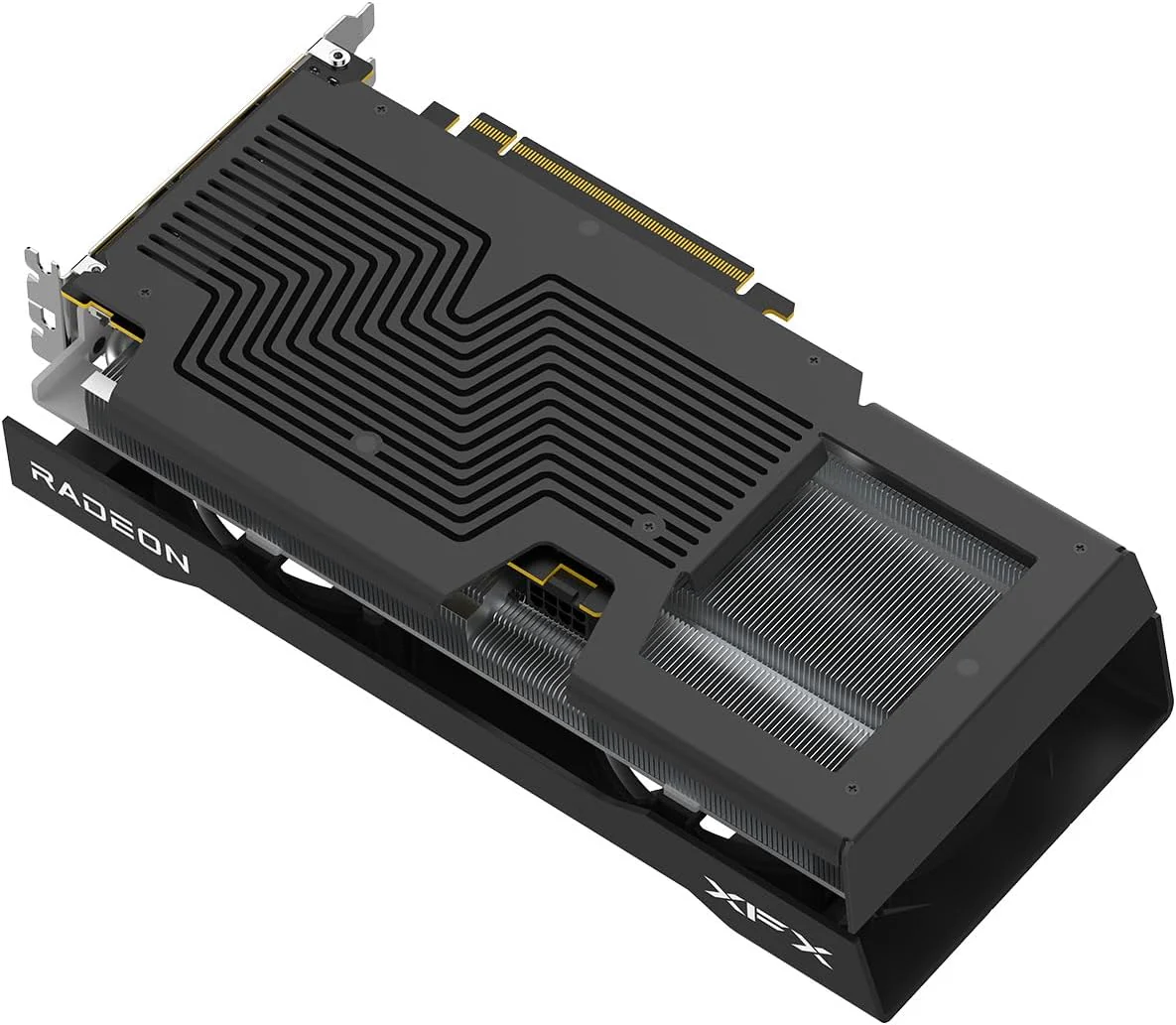

• Rigid Protective Aluminum Backplate: Features a clean, structural metal plate on the rear side to prevent PCB bending, protect internal surface traces, and aid passive thermal dispersion.

Technical Specifications

• Model: RX-96TSW16BQ

• Series: XFX Swift Series

• GPU Architecture: AMD RDNA 4

• Overclocking Profile: Factory Overclocked (OC Edition)

• Memory Capacity: 16 GB

• Memory Type: GDDR6

• Memory Bus Interface: 128-bit

• Bus Standard: PCI Express 4.0 x8 (x16 mechanical slot footprint)

• Display Interface Ports:

  • 3 × DisplayPort 2.1a

  • 1 × HDMI 2.1b

• Cooling Solution: 3 × Dual Ball-Bearing Fans (Triple Fan Array)

• Form Factor Slots: 2.5-Slot Form Factor

• Power Connections: 1 × 8-Pin PCI-E Power Connector

• Minimum System Power Supply (PSU): 650 Watts

• Hardware Technologies Supported: AMD FidelityFX Super Resolution 4 (FSR 4), Ray Tracing, AMD Fluid Motion Frames 2, AV1 Hardware Encoding, and Smart Access Memory (SAM)

• Card Dimensions: 30.5 cm × 12.0 cm × 4.8 cm
